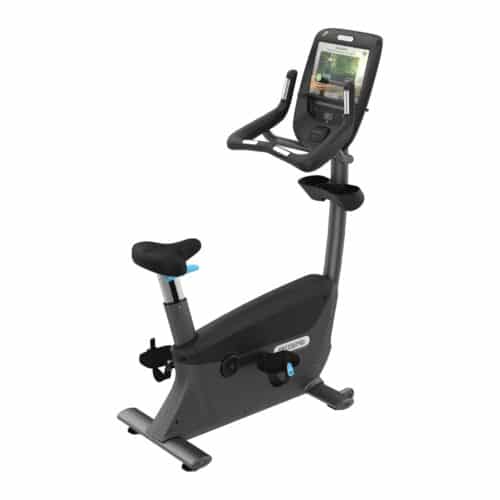

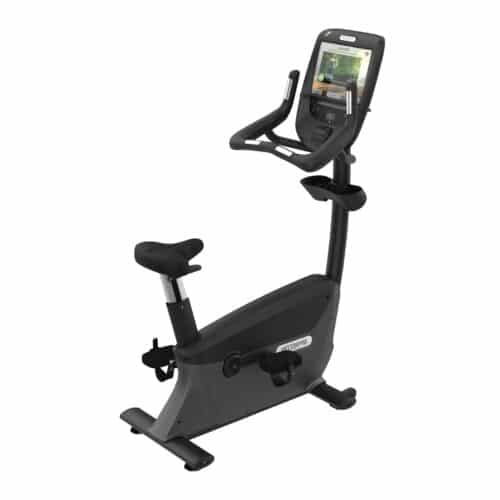

The UBK 885 upright bike features custom-designed handlebars with integrated touch heart rate for maximum comfort and efficient workout experience. One-handed seat adjustment on or off the bike, redesigned saddle for riding comfort and improved knee over pedal spindle (KOPS) geometry for efficient pedalling mean a smooth, comfortable workout
Easy of Assembly & Service
The easy to remove shroud ensures easy access to the belt-drive system for maintenance and servicing without removing the pedals or crank.
Innovation for Superior Riding Comfort
Over-molded handle bars add comfort and durability while offering heart rate contacts and three ergonomic riding positions: upright, cruising and road. The simple seat adjustment allows the user to change the position of the seat with one hand, either on or off the bike.
880 Line Touchscreen Console
With a touch screen console just like a high-end phone, and a simple, intuitive interface that draws users deeper into their workout, the 880 Line console is a reliable fitness solution that will provide a personalized fitness experience that engages and motivates them to come back for more.
Equipment Features
| Covers | Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks. |
| Cable Management | Optional |
| Accessories Holder(s) | Yes |
| Transport Wheels | Integrated |
| Frame | Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame. |
| Bearings | The bottom bracket assembly uses a hardened steel shaft with deep-groove sealed precision ball bearings designed for smooth operation and exceptional service life. |
| Seat | Ergonomic saddle design with comfort groove. 10.5 inches (27 cm) width quickly tapers to a narrow nose for improved riding comfort. Optional universal seat post allows easy installation of different saddle types. |
| Handlebars | A new over-molded handlebar design offers the user three comfortable riding positions-upright, cruising, and road. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position. The wide width of the handlebars provide stability and comfort along the entire forearm. The overall width of the handlebars is similar to indoor cycling bikes, which is narrower than most stationary bikes. This places the user in better ergonomic position with the forearms more directly under the shoulders. In the cruising position, the wide handlebar is more comfortable on the user’s hands. Touch heart rate is integrated in the upright and road-race positions. |
| Pedals | For double the convenience, dual-sided pedals allow the rider to use the pedals with or without the integrated pedal strap. The extra wide pedal comfortably accommodates feet of all sizes, which allows proper pedaling form with the foot directly over the user’s knee. |
| Biomechanics | To achieve proper pedaling biomechanics, the seat post and seat post offset from the crank is key to aide in efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5 inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position. |
Resistance System
| Minimum Watts | 18 watts (level 1 at 20 RPM) |
| Maximum Watts | 750 watts (level 25 at 150 RPM) |
| Resistance Levels | 25 |
| 3-Piece Crank | 3-piece crank tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal. |
| Drive System | The two-stage drive system yields a smooth, comfortable, quiet operation with a lower start-up resistance and more consistent resistance progression than single-stage drive systems. |
| 3-Phase Generator | 3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike. |
| Belt Drive | Belt drive for smoother, quieter operation and reduced maintenance. |
Console Features
| Electronic Readouts | 18 Readouts Resistance LevelTotal Distance, Distance Remaining Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts Time Elapsed, Time Remaining, Time in Zone, Segment Time RPM, Speed, Average Speed Heart Rate, Average Heart Rate, Max Heart Rate |
| Numeric Keypad | Yes |
| Motion Controls | Yes |
| QuickStart™ | Yes |
| Tactile Dome Keys | Yes |
| Units Selection | Metric or U.S. Standard |
| Console Language(s) | English, Chinese, Danish, Dutch, French, Finnish, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish |
| Preva® Pass Reader | Yes |
| Maximum Pause Time (Pause) | 5 minutes |
| Preset Programs | 17 Programs Lose Weight 4-3 Interval Aerobic Fat Burner Heart Rate Zone Be Fit Manual 1-1 Interval 2-1 Interval 4-1 Interval Rolling Hills Mountain Peaks Hill Climb Heart Rate Zone Push Performance 1-4 Interval 1-2 Interval 5 K Heart Rate Zone Watts Target |
| Console Type | 15-inch LCD Capacitive Touch Screen |
| Maximum Workout Time | 120 minutes |
Heart Rate Monitoring
| Touch | Yes. Touch heart rate sensors conveniently located on the handlebars in both the upright and road positions. |
| Telemetry | Yes. Integrated telemetry heart rate reads heart rate from a user’s heart rate chest strap. |
| Heart Rate Sensor Advisory | The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions. |
Network Capabilities
| Diagnostics | Ability to set club parameters, e.g. limit exercise time, set default language and pause time. |
| Wireless | Yes |
| Preva® Network Capable | Optional |
Equipment Dimensions and Weight
| Length | 48 inches / 122 cm |
| Width | 21 inches / 53 cm |
| Equipment Weight | 169 lbs / 77 kg |
| Height | 62 inches / 157 cm |
Shipping Dimensions and Weight
| Length | 51.5 inches / 131 cm |
| Width | 28.5 inches / 72 cm |
| Height | 54 inches / 137 cm |
| Shipping Weight | 178 lbs / 81 kg |
Power Requirements
| Equipment | Powered |
| International 240 VAC | Applicable country-specific power cord |
| U.S. & Canada 120 VAC | 120V/15A circuit with 5-15R NEMA receptacle |
| Personal Viewing Screen (PVS) | Powered |
Equipment Specifications
| Maximum User Weight | 350 lbs / 159 kg |
Regulatory
| FCC | FCC |
| ETL | ETL |
| CE | CE |
| EN957 | EN957 / ASTM |
Integrated Entertainment Options
| Reading Rack | Optional |
| Personal Viewing System (PVS) | Integrated |
| Personal Viewing Screen (PVS) (Specification) | 15in. LCD Capacitive Touch Screen |
| iPod® / iPhone® Compatible | Integrated |
Residential Warranty
| Series/Line | Experience™ Series 600/700/800 Line |
| Frame | Lifetime |
| Drive Motor, Running Deck, & Belt | 10 years |
| Console | 3 years |
| Labor | 1 year |
| High Wear Items, i.e. headphone jack, USB connectors | 90 days |
