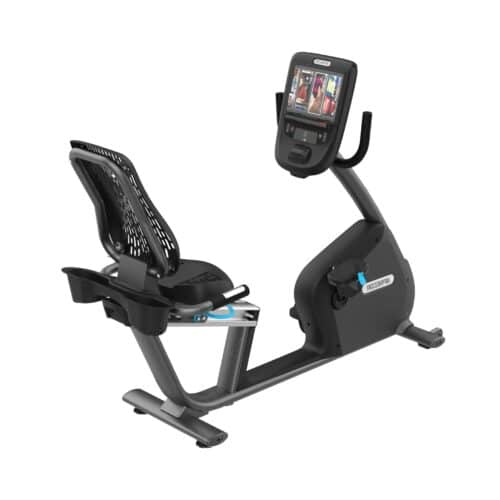

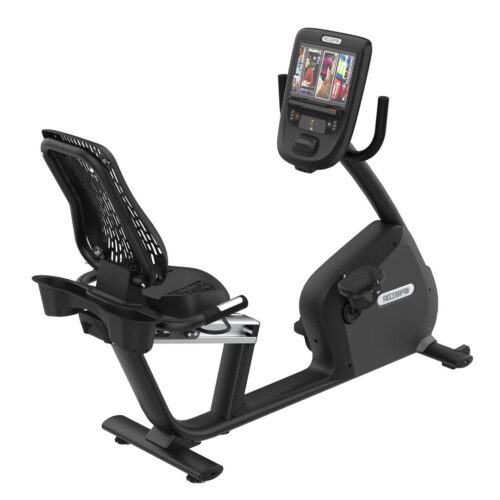

The RBK 865 recumbent bike features our 860 Line console and a step-through design to appeal to a wide range of exercisers of all ages. The simple seat adjustment allows the user to change the position of the seat with one hand, either on or off the bike. A ventilated air flex seat provides exceptional comfort.
Step-through design for easy mounting and dual-sided pedals make the RBK 885 a durable, well design product. Access to under the shroud is easy for your servicers as they do not have to remove pedals or cranks.
The recumbent bike includes features like the air flex seat witha ventilated panel and unique suspension system for a cool, cushioned ride. A simple seat adjustment allows the user to change the position of the seat with one hand, either on or off the bike.

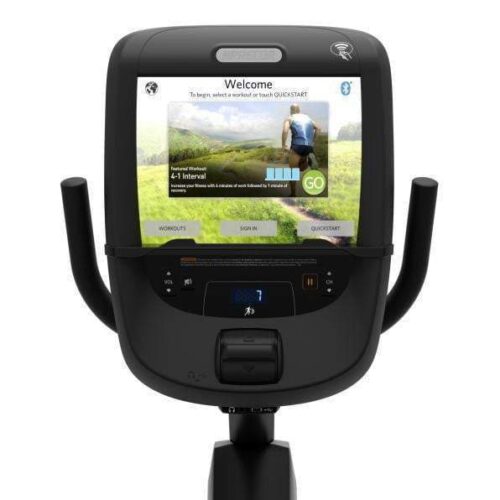

The 860 Line console provides a personalized viewing experience, remarkable TV clarity, and internet options that exercisers crave, all in a 10″ screen. With the ability to “favorite” selections for the future, exercisers can customize their workout experience based on what is important to them.
Equipment Features
Covers | Shrouds are attached with minimal hardware and can be removed without taking off the pedals or cranks. |
Cable Management | Optional |
Accessories Holder(s) | Dual accessories holder for water bottle, portable music, keys, etc. |
Transport Wheels | Integrated |
Biomechanics | To achieve proper pedaling biomechanics, Precor designed the recumbent bike to maintain similar biomachines as developed for the upright bike. That means setting the angle of the seat rail with an offset from the crank to aid with efficient pedaling and reduced shear force on the knee. The seat rail angle is at 15 degrees with a slight offset from the crank axle. This places the knee directly over the ball of the foot (or pedal spindle) when the pedals are in the 2 and 8 o’clock positions. |
Frame | Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame. |
Seat | The air flex seat back features a “floating” suspension system that allows the seat back to move with the user for unsurpassed comfort. The ergonomic curved design and ample ventilation further enhance user comfort. And the polypropylene material is virtually indestructible. |
Bearings | The bottom bracket assembly uses a hardened steel shaft with deep-groove sealed precision ball bearings designed for smooth operation and exceptional service life. |
Seat Adjustment | The simple, convenient seat adjustment allows the user to easily change the seat to their desired height, with one hand either on or off the bike. |
Handlebars | The over-molded seat bottom is shaped for comfort to facilitate pedaling ergonomics. |
Pedals | For double the convenience, dual-sided pedals allow the rider to use the pedals with or without the integrated pedal strap. The extra wide pedal comfortably accommodates feet of all sizes, which allows proper pedaling form with the foot directly over the user’s knee. |
Step-Through Design | The RBK 865 recumbent bike features a step-through design (14 in / 36 cm wide) with a very low step-over height (4 in / 10 cm). |
Ergonomics | The riding cockpit is designed with sound ergonomics. The seat pads are angled for optimal comfort, maximum low back support, and minimal interference with the movement of the user’s legs. The console is mounted at an optimal viewing angle, with the machine controls within easy reach. |
Resistance System
Minimum Watts | 18 (Level 1 at 20 RPM) |
Maximum Watts | 750 (Level 25 at 150 RPM) |
Resistance Levels | 25 |
3-Piece Crank | 3-piece crank tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal. |
Drive System | The two-stage drive system yields a smooth, comfortable, quiet operation with a lower start-up resistance and more consistent resistance progression than single-stage drive systems. |
3-Phase Generator | 3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike. |
Belt Drive | Belt drive for smoother, quieter operation and reduce maintenance. |
Console Features
Numeric Keypad | Yes |
Motion Controls | Yes, in software |
QuickStartâ„¢ | Yes |
Tactile Dome Keys | Vol up/down, mute, Channel up/down, pause workout |
Units Selection | Metric and U.S. Standard |
Console Language(s) | English, Chinese, Danish, Dutch, French, Finnish, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish |
Maximum Pause Time (Pause) | 5 minutes (adjustable) |
Maximum Workout Time | 120 minutes (adjustable) |
Electronic Readouts | Resistance Level Total Distance, Distance Remaining Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts Time Elapsed, Time Remaining, Time in Zone, Segment Time RPM, Speed, Average Speed Heart Rate, Average Heart Rate, Max Heart Rate |
Preset Programs | Lose Weight 4-3 Interval Aerobic Fat Burner Heart Rate Zone Be Fit Manual 1-1 Interval 2-1 Interval 4-1 Interval Rolling Hills Mountain Peaks Hill Climb Heart Rate Zone Push Performance 1-4 Interval 1-2 Interval 5 K Heart Rate Zone Watts Target |
Closed Captioning | Yes, CC1-4, Text 1-4 (North America only) |
Heart Rate Monitoring
Touch | Touch heart rate sensors located conveniently on handlebars next to seat. |
Telemetry | Integrated telemetry heart rate reads heart rate from a user’s HR chest strap. |
SmartRate® | N/A |
Heart Rate Sensor Advisory | The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions. |
Integrated Entertainment Options
Closed Captioning | 10.1 in / 25.7 cm LCD Capacitive Touch Screen |
Video decoding | MPEG-2, MPEG-4, H.264 |
Global TV Support | Integrated tuner – NTSC, ATSC, PAL, SECAM, DVB-T/T2/C |
Mobile Device Charger | Yes |
Reading Rack | Integrated |
Video inputs | RF, HDMI (media adapter only – future) |
Network Capabilities
RFID / NFC | ISO/ISEC 14443A MIFARE, NFC P2P and R/W modes (future) |
Ethernet | 10/100/1000 Base-T |
Diagnostics | Ability to set club parameters, e.g. limit exercise time, set default language and pause time. |
FitLinxx Compatible | N/A |
CSAFE Enabled | N/A |
Wifi | 802.11 a/b/g/n, 2.4 GHz MIMO and 5 GHz multiple antenna operation |
Bluetooth | Bluetooth 4.0 (Bluetooth 2.0 plus BTLE) (future) |
Equipment Specifications
User Height Range | 60 to 76 inches / 152 to 193 cm |
Maximum User Weight | 350 lbs / 159 kg |
Resistance Range | 25 18 (Level 1 at 20 RPM) 750 (Level 25 at 150 RPM) |
Crank Width | 19 (7.4) |
Equipment Dimensions and Weight
Length | 67 inches / 170 cm |
Width | 23 inches / 58 cm |
Height | 53.5 inches / 136 cm |
Machine Weight (base equipment) | 219 lbs / 99 kg |
Shipping Dimensions and Weight
Length | 75 inches / 190 cm |
Width | 28 inches / 71 cm |
Height | 57 inches / 145 cm |
Shipping Weight | 228 lbs / 104 kg |
Power Requirements
Equipment | Powered |
Personal Viewing Screen (PVS) | Powered |
Regulatory
cTUVus | Yes |
IEC CB | Yes |
FCC | Yes |
ETL | Yes |
CE | Yes |
EN957 | Yes |
ASTM | Yes |
Residential Warranty
Series/Line | Experienceâ„¢ Series 600/700/800 Line |
Frame | Lifetime |
Drive Motor, Running Deck, & Belt | 10 years |
Console | 3 years |
Labor | 1 year |
High Wear Items, i.e. headphone jack, USB connectors | 90 days |
