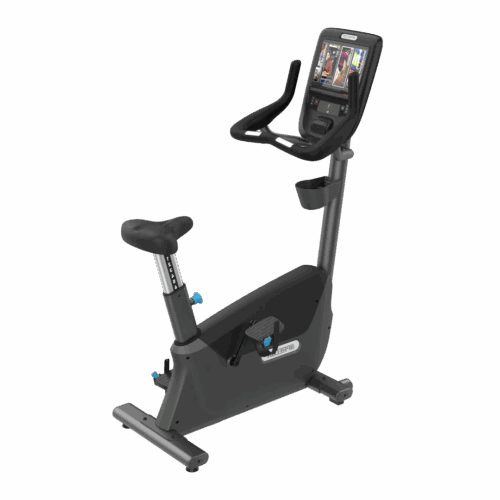

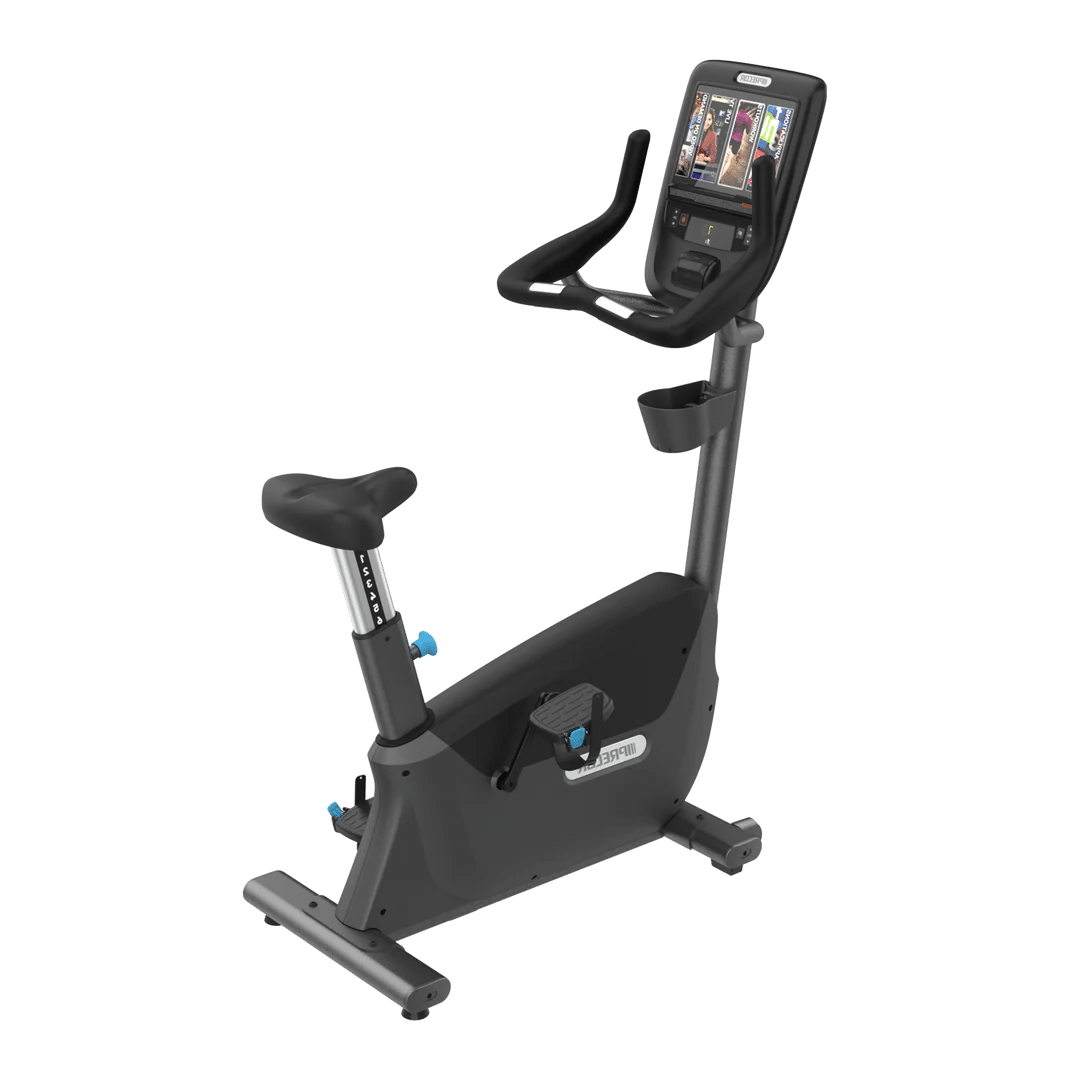

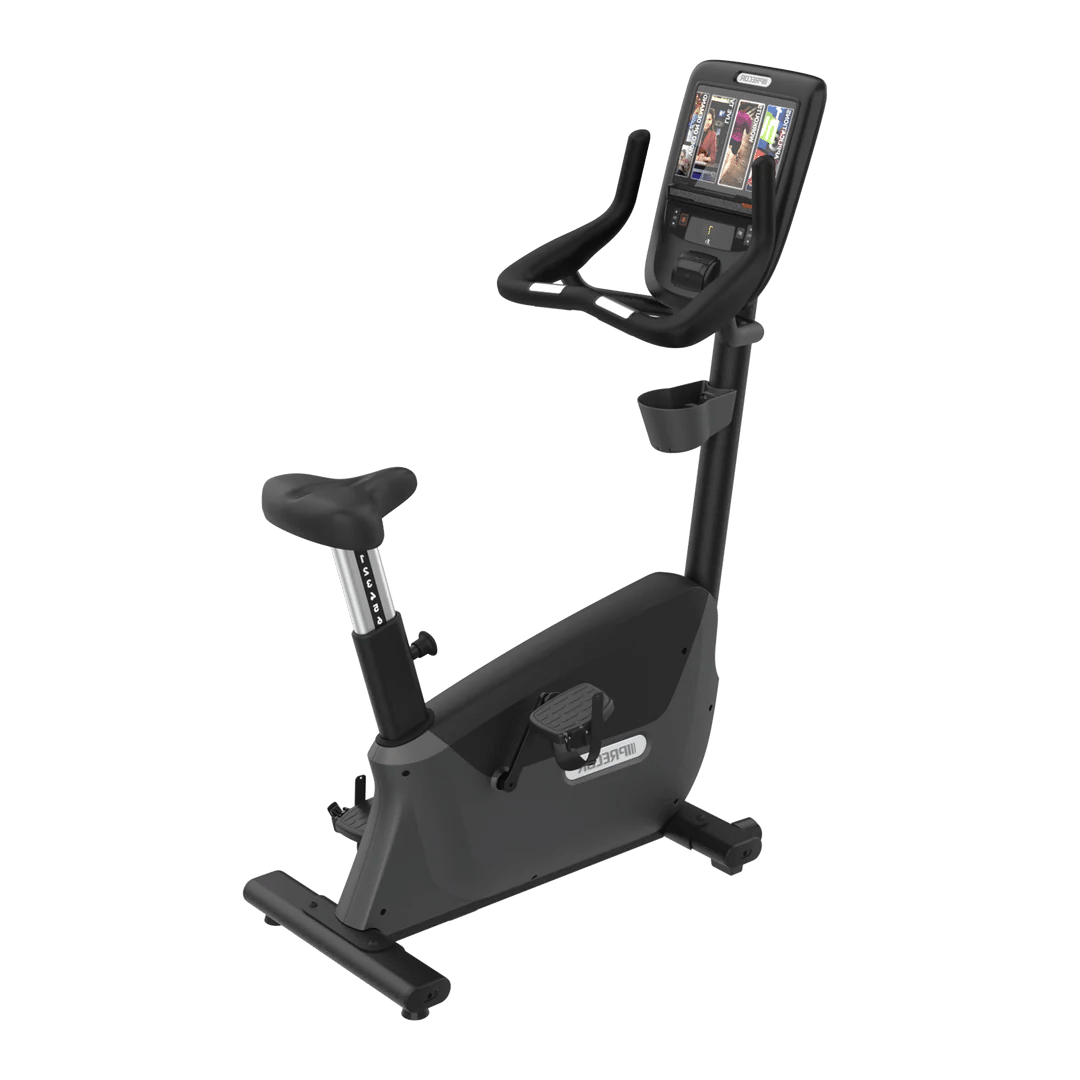

The Experienceâ„¢ Series 600 Line are professional upright exercise bikes at Portland Fitness that are featured in corporate wellness studios, personal training studios, multi-family complexes, and physical therapy centers. These bikes strike the optimal balance between durability, reliability, and innovation. The 600 Line of upright bikes feature custom-designed handlebars with integrated handheld heart rate for maximum comfort and efficient workout experience. Easy seat adjustments. Over-sized, single-sided pedals with integrated pedal straps that comfortably accommodate feet of all sizes and allow for proper pedaling form. The 600 Line of upright exercise bikes in our Portland locations features three models, UBK 635, UBK 665, and UBK 685. The difference between each model is the console (P30, P62, or P82) and is available in either a black or silver frame.
Do you want to see a side-by-side comparison of all Precor cycling machines at Portland Fitness? If yes, click here.
Equipment Features
Cable Management | Optional |
Covers | Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks. |
Accessories Holder(s) | Yes |
Transport Wheels | Integrated |
Universal Seat Mount | No |
Frame | Two-step powder-coating process on steel frame. |
Bearings | Pedal axles and bearings are designed for smooth operation and exceptional service life. |
Seat Adjustment | Familiar pop-pin seat adjustment allows the exerciser to easily change the seat to their desired height. |
Seat | Improved, ergonomic saddle design with comfort groove is injection-molded polyurethane with custom density for optimum riding comfort. 10.5 inches (27 cm) width quickly tapers to a narrow nose for improved riding comfort. |
Resistance Levels | 25 |
Handlebars | Over-molded handlebar design on our upright exercise bike at Portland Fitness offer the exerciser three comfortable riding positions: upright, cruising, and road. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position. The optimum width of the handlebars provides stability and comfort along the entire forearm. The overall width of the handlebars is similar to indoor cycling bikes, which is narrower than most stationary bikes. This places the exerciser in better ergonomic position, with the forearms more directly under the shoulders. In the cruising position, the handlebar is more comfortable on the exerciser’s hands. Touch heart rate is integrated in the upright position. |
Pedals | Over-sized, single-sided pedals with integrated pedal strap comfortably accommodates feet of all sizes, which allows proper pedaling form. The weighted pedals allow for easy placement of foot on the pedal. |
Biomechanics | To achieve proper pedaling biomechanics, the seat post angle and seat post offset from the crank are key to efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5-inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position. |
Resistance System
Maximum Watts | 500 (level 25 at 150 RPM) |
Minimum Watts | 22 (level 1 at 20 RPM) |
Single-Stage Drive System | The single stage drive system is designed to yield smooth, quiet operation and a consistent resistance progression. |
3-Piece Crank | 3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal. |
3-Phase Generator | 3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike. |
Belt Drive | Belt drive for smoother, quieter operation and reduced maintenance. |
Console Features
Display Type | 10.1 in / 25.7 cm LCD Capacitive Touch Screen |
Numeric Keypad | Yes |
Motion Controls | Yes |
QuickStartâ„¢ | Yes |
Tactile Dome Keys | Yes |
Console Language(s) | English, Chinese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish |
Units Selection | Metric and U.S. Standard |
Maximum Pause Time (Pause) | 300 seconds (adjustable) |
Maximum Workout Time | 120 minutes (adjustable) |
Electronic Readouts | Resistance Level
Total Distance, Distance Remaining |
Preset Programs | Lose Weight 4-3 Interval Aerobic Fat Burner Heart Rate Zone Be Fit Manual 1-1 Interval 2-1 Interval 4-1 Interval Rolling Hills Mountain Peaks Hill Climb Heart Rate Zone Push Performance 1-4 Interval 1-2 Interval 5 K Heart Rate Zone Watts Target |
Heart Rate Monitoring
Touch | Touch heart rate sensors located conveniently on handlebars next to seat. |
Telemetry | Integrated telemetry heart rate reads heart rate from a user’s 5 KHz HR chest strap. |
Heart Rate Sensor Advisory | The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions. |
Integrated Entertainment Options
Closed Captioning | Yes, CC1-4, Text 1-4 (North America only) |
Video decoding | MPEG-2, MPEG-4, H.264 |
Global TV Support | Integrated tuner – NTSC, ATSC, PAL, SECAM, DVB-T/T2/C |
Mobile Device Charger | Yes |
Reading Rack | Integrated |
Personal Viewing System (PVS) | Integrated |
Video inputs | RF, HDMI (media adapter option) |
Entertainment Cap / Wireless Receiver | N/A |
Network Capabilities
RFID / NFC | ISO/ISEC 14443A MIFARE, NFC P2P and R/W modes (future) |
Ethernet | 10/100/1000 Base-T |
Diagnostics | Ability to set club parameters, e.g. to limit exercise time and pause time. |
CSAFE Enabled | N/A |
Wifi | 802.11 a/b/g/n, 2.4 GHz MIMO and 5 GHz multiple antenna operation |
Bluetooth | Bluetooth 4.0 (Bluetooth 2.0 plus BTLE) (future) |
Equipment Specifications
Maximum User Weight | 350 lb / 159 kg |
User Height Range | 58 to 78 inches / 147 to 198 cm |
Standard Frame Colors | Gloss Metallic Silver Black Pearl |
Equipment Dimensions and Weight
Length | 43 in / 109 cm |
Width | 21 in / 53 cm |
Equipment Weight | 144 lb / 65 kg |
Height | 58 in / 147 cm |
Shipping Dimensions and Weight
Length | 47 in / 119 cm |
Width | 22 in / 56 cm |
Height | 32 in / 81 cm |
Shipping Weight | 166 lb / 75 kg |
Power Requirements
Equipment | ~100-240V 50/60Hz 0.8 Amps |
Personal Viewing Screen (PVS) | N/A |
Optional Power Supply | N/A |
Residential Warranty
Series/Line | Experienceâ„¢ Series 600/700/800 Line |
Frame | Lifetime |
Drive Motor, Running Deck, & Belt | 10 years |
Console | 3 years |
Labor | 1 year |
High Wear Items, i.e. headphone jack, USB connectors | 90 days |
