Overview

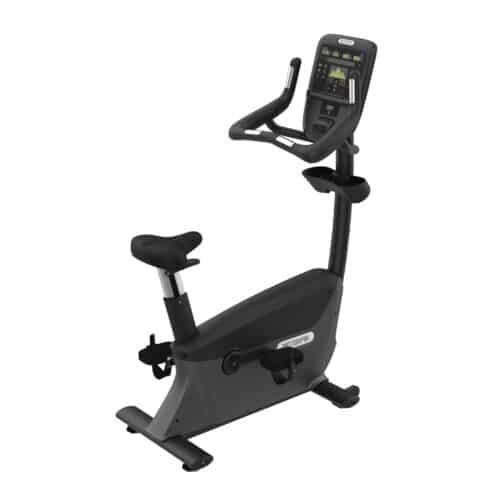

A commercial grade, self-powered upright exercise bike found in health clubs and high end facilities around the world. Extra wide dual sided pedals. Optional Cardio Theater entertainment center.
Workout Variety
On this upright cycle, users can even stand on the pedals like climbing a hill on a traditional bike.
Durability is Built In
A magnetic, no-contact generator system provides consistent resistance and reduces the roughness, maintenance, and wear associated with mechanical alternators. A double step-up drive gives users a smooth, quiet exercise experience. A Poly-V belt is used instead of a chain which means less maintenance and a quiet ride.
Resistance System
| Minimum Watts | 18 watts (level 1 at 20 RPM) |
| Maximum Watts | 750 watts (level 25 at 150 RPM) |
| Resistance Levels | 25 |
| 3-Piece Crank | 3-piece crank tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal. |
| Drive System | The two-stage drive system yields a smooth, comfortable, quiet operation with a lower start-up resistance and more consistent resistance progression than single-stage drive systems. |
| 3-Phase Generator | 3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike. |
| Belt Drive | Belt drive for smoother, quieter operation and reduced maintenance. |
Power Requirements
| Equipment | Self-Powered |
| International 240 VAC | Applicable country-specific power cord |
| U.S. & Canada 120 VAC | 120V/15A circuit with 5-15R NEMA receptacle |
| Personal Viewing Screen (PVS) | Powered |
| Optional Power Supply | Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends. |
Console Features
| Console Type | Advanced LED Display |
| Numeric Keypad | Yes |
| Motion Controls | Yes |
| QuickStart™ | Yes |
| Tactile Dome Keys | Yes |
| Units Selection | Metric or U.S. Standard |
| Electronic Readouts | 18 Readouts Resistance LevelDistance, RPM, Speed Calories Heart Rate Time Remaining, Time Elapsed% Complete, Time in Zone, Segment Time Remaining, Average Speed, Calories / minute, Calories / hour, Watts, METS, Target HR, Average HR |
| Console Language(s) | English, French, German, Italian, Japanese, Portuguese, Russian, Spanish |
| Maximum Workout Time | unlimited |
| Preset Programs | 12 programs accessed by 6 keys: Manual Variety Cross Country Random Custom Resistance Weight Loss Interval 1:1 1:2 1:3 Heart Rate Control Basic HRC Performance Fitness Test Hill Climb Watts Control |
| Pause Range | 1 to 60 seconds |
| Default Pause Setting | 30 seconds |
Heart Rate Monitoring
| Touch | Yes. Touch heart rate sensors conveniently located on the handlebars in both the upright and road positions. |
| Telemetry | Yes. Integrated telemetry heart rate reads heart rate from a user’s heart rate chest strap. |
| Heart Rate Sensor Advisory | The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions. |
Network Capabilities
| Diagnostics | Ability to set club parameters, e.g. limit exercise time, set default language and pause time. |
| CSAFE Ready | Yes |
Equipment Dimensions and Weight
| Height with PVS | 72 inches / 183 cm |
| Length | 48 inches / 122 cm |
| Width | 21 inches / 53 cm |
| Height | 60 inches / 152 cm |
| Equipment Weight | 160 lbs / 73 kg |
Shipping Dimensions and Weight
| Length | 51 inches / 131 cm |
| Width | 28 inches / 71 cm |
| Height | 54 inches / 137 cm |
| Shipping Weight | 178 lbs / 81 kg |
Equipment Specifications
| Maximum User Weight | 350 lbs / 159 kg |
| Standard Frame Colors | Gloss Metallic Silver Black Pearl |
Regulatory
| FCC | FCC |
| ETL | ETL |
| CE | CE |
| EN957 | EN957 / ASTM |
Integrated Entertainment Options
| Reading Rack | Integrated |
| Personal Viewing System (PVS) | Optional |
| Personal Viewing Screen (PVS) (Specification) | 15.6 inch / 39.6 cm screen |
| Entertainment Cap / Wireless Receiver | Optional |
Residential Warranty
| Series/Line | Experience™ Series 600/700/800 Line |
| Frame | Lifetime |
| Drive Motor, Running Deck, & Belt | 10 years |
| Console | 3 years |
| Labor | 1 year |
| High Wear Items, i.e. headphone jack, USB connectors | 90 days |
