Description

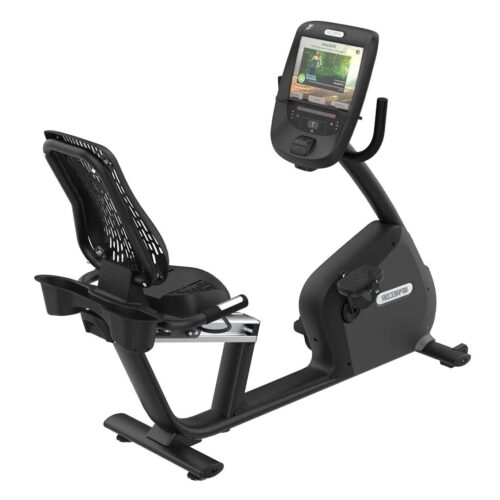

The RBK 885 recumbent bike features our 880 Line console and a step-through design to appeal to a wide range of exercisers of all ages. The simple seat adjustment allows the user to change the position of the seat with one hand, either on or off the bike. A ventilated air flex seat provides exceptional comfort.
Commercial Design
Step-through design for easy mounting and dual-sided pedals make the RBK 885 a durable, well design product. Access to under the shroud is easy for your servicers as they do not have to remove pedals or cranks.
Proprietary Innovations
The recumbent bike includes features like the air flex seat witha ventilated panel and unique suspension system for a cool, cushioned ride. A simple seat adjustment allows the user to change the position of the seat with one hand, either on or off the bike.
880 Line Touchscreen Console
The 880 line console offers a brilliant 15″ screen that’s ergonomically positioned to deliver crystal clear entertainment viewing for exercisers in motion. When networked, it is also a direct-to-exerciser communication portal allowing you an opportunity to build your brand, share information about activities and services, and strengthen the sense of community within your facility.
Equipment Features
| Covers | Shrouds are attached with minimal hardware and can be removed without taking off the pedals or cranks. |
| Cable Management | Optional |
| Accessories Holder(s) | Yes |
| Transport Wheels | Integrated |
| Biomechanics | To achieve proper pedaling biomechanics, Precor designed the recumbent bike to maintain similar biomechanics as used on their upright bike. That means setting the angle of the seat rail with an offset from the crank to aide with efficient pedaling and reduced shear force on the knee. The seat rail angle is at 15 degrees with a slight offset from the crank axle. This places the knee directly over the ball of the foot (or pedal spindle) when the pedals are in the 2 and 8 o’clock position. |
| Frame | Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame. |
| Seat | The air flex seat back features a “floating” suspension system that allows the seat back to move with the user for unsurpassed comfort. The ergonomic curved design and ample ventilation further enhance user comfort. And the polypropylene material is virtually indestructible. |
| Bearings | The bottom bracket assembly uses a hardened steel shaft with deep-groove sealed precision ball bearings designed for smooth operation and exceptional service life. |
| Seat Adjustment | The simple, convenient seat adjustment allows the user to easily change the seat to their desired height, with one hand either on or off the bike. |
| Handlebars | The console handlebars help with entry and exit, while the riding handle bars provide optional hand and arm positioning and heart rate monitoring. |
| Pedals | For double the convenience, dual-sided pedals allow the rider to use the pedals with or without the integrated pedal strap. The extra wide pedal comfortably accommodates feet of all sizes, which allows proper pedaling form with the foot directly over the user’s knee. |
| Step-Through Design | The RBK 885 recumbent bike features a step-through design (14 in / 36 cm wide) with a very low step-over height (4 in / 10 cm). |
| Ergonomics | The riding cockpit is designed with sound ergonomics. The seat pads are angled for optimal comfort, maximum low back support, and minimal interference with the movement of the user’s legs. The console is mounted at an optimal viewing angle, with the machine controls within easy reach. |
Resistance System
| Minimum Watts | 18 watts (level 1 at 20 RPM) |
| Maximum Watts | 750 watts (level 25 at 150 RPM) |
| Resistance Levels | 25 |
| 3-Piece Crank | 3-piece crank tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal. |
| Drive System | The two-stage drive system yields a smooth, comfortable, quiet operation with a lower start-up resistance and more consistent resistance progression than single-stage drive systems. |
| 3-Phase Generator | 3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike. |
| Belt Drive | Belt drive for smoother, quieter operation and reduced maintenance. |
Console Features
| Electronic Readouts | 18 Readouts Resistance Level,Total Distance, Distance Remaining Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts Time Elapsed, Time Remaining, Time in Zone, Segment Time RPM, Speed, Average Speed Heart Rate, Average Heart Rate, Max Heart Rate |
| Numeric Keypad | Yes |
| Motion Controls | Yes |
| QuickStart™ | Yes |
| Tactile Dome Keys | Yes |
| Units Selection | Metric or U.S. Standard |
| Console Language(s) | English, Chinese, Danish, Dutch, French, Finnish, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish |
| Preva® Pass Reader | Yes |
| Maximum Pause Time (Pause) | 5 minutes |
| Preset Programs | 17 Programs Lose Weight 4-3 Interval Aerobic Fat Burner Heart Rate Zone Be Fit Manual 1-1 Interval 2-1 Interval 4-1 Interval Rolling Hills Mountain Peaks Hill Climb Heart Rate Zone Push Performance 1-4 Interval 1-2 Interval 5 K Heart Rate Zone Watts Target |
| Console Type | 15-inch LCD Capacitive Touch Screen |
| Maximum Workout Time | 120 minutes |
Heart Rate Monitoring
| Touch | Yes. Touch heart rate sensors located conveniently on handlebars next to seat. |
| Telemetry | Yes. Integrated telemetry heart rate reads heart rate from a user’s heart rate chest strap. |
| Heart Rate Sensor Advisory | The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions. |
Network Capabilities
| Diagnostics | Ability to set club parameters, e.g. limit exercise time, set default language and pause time. |
| Wireless | Yes |
| Preva® Network Capable | Optional |
Equipment Dimensions and Weight
| Length | 67 inches / 170 cm |
| Width | 23 inches / 58 cm |
| Equipment Weight | 219 lbs / 99 kg |
| Height | 53.5 inches / 136 cm |
Shipping Dimensions and Weight
| Length | 75 inches / 190 cm |
| Width | 28 inches / 71 cm |
| Height | 57 inches / 145 cm |
| Shipping Weight | 228 lbs / 104 kg |
Power Requirements
| Equipment | Powered |
| International 240 VAC | Applicable country-specific power cord |
| U.S. & Canada 120 VAC | 120V/15A circuit with 5-15R NEMA receptacle |
| Personal Viewing Screen (PVS) | Powered |
Equipment Specifications
| Maximum User Weight | 350 lbs / 159 kg |
Regulatory
| FCC | FCC |
| ETL | ETL |
| CE | CE |
| EN957 | EN957 / ASTM |
Integrated Entertainment Options
| Reading Rack | Optional |
| Personal Viewing System (PVS) | Integrated |
| Personal Viewing Screen (PVS) (Specification) | 15in. LCD Capacitive Touch Screen |
| iPod® / iPhone® Compatible | Integrated |
Residential Warranty
| Series/Line | Experience™ Series 600/700/800 Line |
| Frame | Lifetime |
| Drive Motor, Running Deck, & Belt | 10 years |
| Console | 3 years |
| Labor | 1 year |
| High Wear Items, i.e. headphone jack, USB connectors | 90 days |
