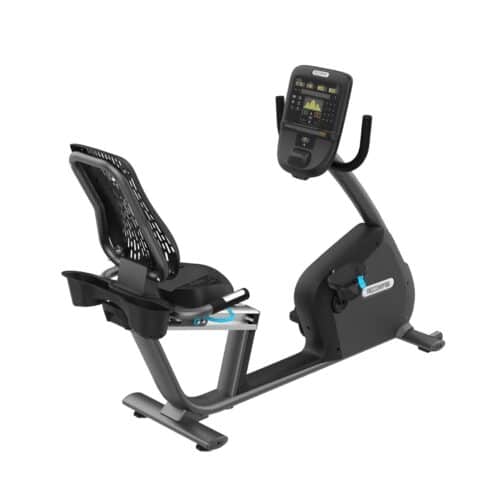

Precor RBK 835 Recumbent Bike

The Precor RBK 835 recumbent bike features a step-through design to appeal to a wide range of exercisers of all ages. The simple seat adjustment allows the user to change the position of the seat with one hand, either on or off the bike. A ventilated air flex seat provides exceptional comfort.

Overview

Equipment Features

Step-Through Design	The RBK 835 recumbent bike features a step-through design (14 in / 36 cm wide) with a very low step-over height (4 in / 10 cm).
Ergonomics	The riding cockpit is designed with sound ergonomics. The seat pads are angled for optimal comfort, maximum low-back support, and minimal interference with the movement of the user’s legs. The console is mounted at an optimal viewing angle, with the machine controls within easy reach.
Handlebars	The console handlebars help with entry and exit, while the riding handle bars provide optional hand and arm positioning and heart rate monitoring.
Seat	The air flex seat back features a “floating” suspension system that allows the seat back to move with the user for unsurpassed comfort. The ergonomic curved design and ample ventilation further enhance user comfort. And the polypropylene material is virtually indestructible.
Biomechanics	To achieve proper pedaling biomechanics, Precor designed the recumbent bike to maintain similar biomechanics as used on their upright bike. That means setting the angle of the seat rail with an offset from the crank to aide with efficient pedaling and reduced shear force on the knee. The seat rail angle is at 15 degrees with a slight offset from the crank axle. This places the knee directly over the ball of the foot (or pedal spindle) when the pedals are in the 2 and 8 o’clock position.
Bearings	The bottom bracket assembly uses a hardened steel shaft with deep-groove sealed precision ball bearings designed for smooth operation and exceptional service life.
Pedals	For double the convenience, dual-sided pedals allow the rider to use the pedals with or without the integrated pedal strap. The extra wide pedal comfortably accommodates feet of all sizes, which allows proper pedaling form with the foot directly over the user’s knee.
Frame	Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame.
Seat Adjustment	The simple, convenient seat adjustment allows the user to easily change the seat to their desired height, with one hand either on or off the bike.
Covers	Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks.
Transport Wheels	Integrated
Cable Management	Optional

Resistance System

3-Piece Crank	3-piece crank tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.
Drive System	The two-stage drive system yields a smooth, comfortable, quiet operation with a lower start-up resistance and more consistent resistance progression than single-stage drive systems.
3-Phase Generator	3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike.
Belt Drive	Belt drive for smoother, quieter operation and reduced maintenance.
Resistance Levels	25
Minimum Watts	18 watts (level 1 at 20 RPM)
Maximum Watts	750 watts (level 25 at 150 RPM)

Console Features

Console Type	Large LED Display
Tap Control	No
Tactile Dome Keys	Yes
QuickStart™	Yes
Numeric Keypad	Yes
Units Selection	Metric or U.S. Standard
Preset Programs	Manual Variety Cross Country Random Custom Resistance Weight Loss Interval 1:1 1:2 1:3 Heart Rate Control Basic HRC Performance Fitness Test Hill Climb Watts Control
Console Language(s)	Dutch, English, French, German, Italian, Russian, Spanish
Maximum Pause Time (Pause)	30 seconds
Electronic Readouts	Resistance Level Distance, RPM, Speed Calories Heart Rate Time Remaining, Time Elapsed Time in Zone, Segment Time Remaining, Average Speed, Calories / minute, Calories / hour, Watts, METS, Target HR, Average HR, % Complete Workout Profile Workout Summary
Maximum Workout Time	unlimited

Heart Rate Monitoring

Touch	Yes. Touch heart rate sensors located conveniently on handlebars next to seat.
Telemetry	Yes. Integrated telemetry heart rate reads heart rate from a user’s heart rate chest strap.
SmartRate	No

Integrated Entertainment Options

Reading Rack	Integrated
Personal Viewing Screen (PVS) (Specification)	15in. Screen
Personal Viewing System (PVS) + Personal Entertainment Player (PEP) (iPod® compatibility)	Optional
Entertainment Cap / Wireless Receiver	Optional

Network Capabilities

CSAFE Ready	Yes
FitLinxx Compatible	Yes
Diagnostics	Ability to set club parameters, e.g. limit exercise time, set default language and pause time.

Equipment Specifications

Maximum User Weight (lbs / kg)	350 lbs / 159 kg
User Height Range (inches / cm)	60 to 76 / 152 to 193
Crank Width	19 (7.4)
Resistance Range	25 18 (level 1 at 20 RPM) 750 (level 25 at 150 RPM)

Equipment Dimensions and Weight

Length	67 inches / 170 cm
Width	23 inches / 58 cm
Height	50 inches / 127 cm
Height with PVS	63 inches / 160 cm
Equipment Weight	210 lbs / 95 kg

Shipping Dimensions and Weight

Length	75 inches / 190 cm
Width	28 inches / 71 cm
Height	57 inches / 145 cm
Shipping Weight	219 lbs / 100 kg

Power Requirements

Equipment	Self-Powered
Personal Viewing Screen (PVS)	Powered
Optional Power Supply	Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends.
U.S. & Canada 120 VAC	120V/15A circuit with 5-15R NEMA receptacle
U.S. & Canada 240 VAC	N/A
International 240 VAC	Applicable country-specific power cord

Regulatory

FCC	FCC
ETL	ETL
CE	CE
EN957 / ASTM	EN957 / ASTM

Residential Warranty

Series/Line	Experience™ Series 600/700/800 Line
Frame	Lifetime
Drive Motor, Running Deck, & Belt	10 years
Console	3 years
Labor	1 year
High Wear Items, i.e. headphone jack, USB connectors	90 days
