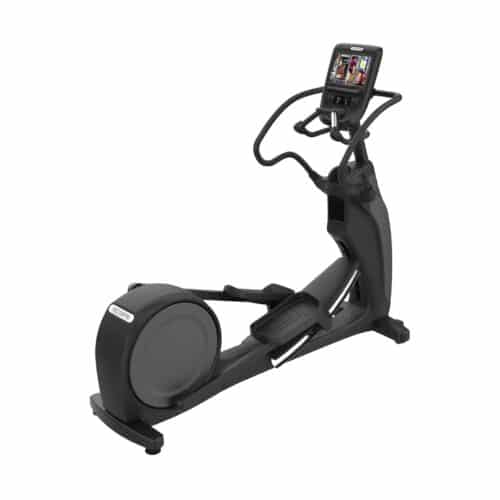

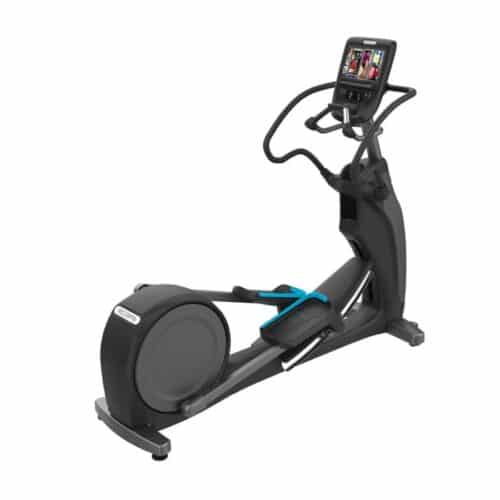

The Precor EFX 863 with Converging CrossRamp® combines reliability with a natural converging stride path to give you the perfect elliptical for your facility. Carrying on the tradition of Precor reliability and service, the EFX is easy to clean and maintain with a covered ramp and rear drive housing, and the Active Status Light – all to improve your ownership experience. For exercisers, the EFX 863 combines the benefits of our patented CrossRamp® technology and fixed handlebars for a lower body workout. The adjustable CrossRamp® technology offers ramp inclines from 10 to 35 degrees to target different muscle groups for more workout variety. And, our unique converging stride path allows the exerciser’s footpath to converge naturally – just like walking or running.
FEATURES
Converging CrossRamp® Technology
Our patented elliptical path follows a natural running stride with a movement that allows the user’s feet to converge toward the midline of their body. Users can isolate or crosstrain specific lower body muscle groups simply by adjusting the angle of the ramp, making it easy to target different muscle groups, encourage training variance and propel results. Our patented elliptical path follows a natural running stride with a movement that allows the user’s feet to converge toward the midline of their body.
Fixed Handlebars
Fixed handlebars allow users to focus on lower body workouts at higher resistance levels or challenge stabilizers during hands-free training.

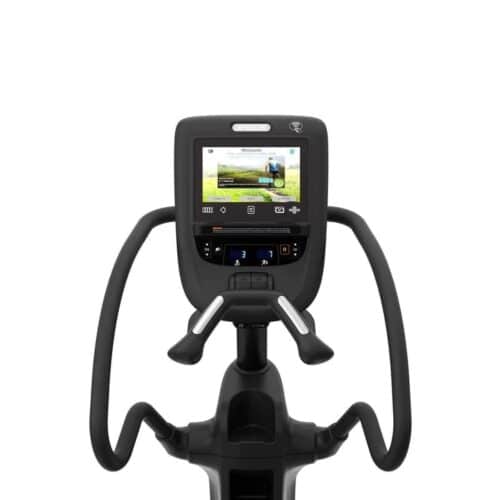

860 Line Touchscreen Console
The 860 Line console provides a personalized viewing experience, remarkable TV clarity, and internet options that exercisers crave, all in a 10″ screen. With the ability to “favorite” selections for the future, exercisers can customize their workout experience based on what is important to them.
SPECIFICATIONS
Equipment Features
Water Bottle and Accessories Holder | Thoughtful, secure storage with a logical, clean place for your water bottle, cell phone, and other accessories. |
Covers | Long lasting appearance with covered ramp, enclosed rear covers, and covered frame and pivot joints. Covered ramp to prevent dirt and debris build-up. Easy to clean without removing the ramp cover or pedals. Rear access cover can be removed and replaced in less than 2 minutes by removing only two screws. Convenient access to check and adjust drive belt tension. Front covers can be removed in less than 2 minutes, providing quick access to lift assembly. |
Transport Wheels | Wide transport wheels in the front of the EFX® allow the unit to be moved when cleaning the floor. |
Bearings | Dual, in-line polyurethane wheels with over-sized axles and premium sealed bearings provide a perfectly balanced load, gliding on stamped, stainless steel tracks for an incredibly smooth feel. |
Foot Pedals | Oversized, polypropylene foot pedals fit your largest user and are easy to clean. |
Ramp | Converging Adjustable CrossRamp® |
Biomechanics | Biomechanics validated by Western Washington University for users of all ages, fitness levels and sizes, from the 5% size female to the 95% size male user. |
Ramp Angle | 10 to 35 |
Upper Body Handlebars | Fixed handlebars |
CrossRamp® Technology | Provides 20 different settings (10-35 degree ramp incline) for users to target different muscle groups. Ideal for all age and fitness levels. |
Resistance System
Minimum Watts | 18 |
Maximum Watts | 720 |
Resistance System | Durable, 3-phase hybrid generator / eddy current system with new, faster controller provides 20 levels to tailor workouts with consistent, smooth resistance. The 20 resistance levels range from 18 watts (level 1 at 40 SPM) to 720 watts (level 20 at 200 SPM). |
Resistance Levels | 1 – 20 |
Console Features
Numeric Keypad | Yes, in software |
Motion Controls | Yes – Resistance and Incline |
Tactile Dome Keys | Vol up/down, mute, Channel up/down, pause workout |
QuickStart™ | Yes |
Console Language(s) | English, Chinese, Danish, Dutch, French, Finnish, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish |
Units Selection | Metric or U.S. Standard |
Maximum Workout Time | 120 minutes (60 default) |
Maximum Pause Time (Pause) | 300 seconds (120 default) |
Electronic Readouts | Key Panel: Resistance Incline User Interface: Total Distance, Distance Remaining Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts Time Elapsed, Time Remaining, Segment Time Strides/Min, Avg Strides/Min, Total Strides Heart Rate, Average Heart Rate, Max Heart Rate |
Featured Workout of the Day | Yes |
Video Decoding | MPEG-2, MPEG-4, H.264 |
Console Type | 10.1 in / 25.7 cm LCD Capacitive Touch Screen |
Preset Programs | Lose Weight 4-3 Interval Aerobic Aerobic Plus Fat Burner Heart Rate Zone Be Fit Manual 1:1 Interval 2:1 Interval 4:1 Interval Total Body Interval Rolling Hills Mountain Peaks Heart Rate Zone Get Toned Glute Toner Glute Toner Plus Leg Sculpt Leg Sculpt Plus Push Performance 1-4 Interval 1-2 Interval 5K Heart Rate Zone Test Your Fitness Fitness Test |
Network Capabilities
Ethernet | 10/100/1000 Base-T |
Diagnostics | Ability to pull log files, set club parameters, e.g. limit exercise time, set default language and pause time. |
Wifi | 802.11 a/b/g/n, 2.4 GHz MIMO and 5 GHz multiple antenna operation |
Heart Rate Monitoring
Touch | Handheld heart rate sensors located on fixed handlebars for increased accuracy and ease-of-use by users of all sizes. |
Telemetry | Equipped for heart rate telemetry reading using a chest strap. |
Heart Rate Sensor Advisory | The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions. |
Integrated Entertainment Options
Closed Captioning | Yes, CC1-4, Text 1-4 (North America only) |
Video decoding | MPEG-2, MPEG-4, H.264 |
Global TV Support | Integrated tuner – NTSC, ATSC, PAL, SECAM, DVB-T/T2/C |
Mobile Device Charger | Yes |
Reading Rack | Standard |
Personal Viewing System (PVS) | Integrated |
Personal Viewing Screen (PVS) (Specification) | 10.1 in / 25.7 cm LCD Capacitive Touch Screen Supports NSTB, PAK, PAL BG Standards, Closed Caption |
Video inputs | RF, HDMI (media adapter only – future) |
Equipment Specifications
Stride Length at Minimum Incline (inches / cm) | 21 inches / 54 cm |
Stride Length at Maximum Incline (inches / cm) | 25 inches / 63 cm |
Maximum User Weight | 350 lbs / 159 kg |
Minimum Space Between Foot Pedals (inches / cm) | 1.5 inches / 3.8 cm |
Foot Pedal Dimensions (inches / cm) | 16 x 8 inches / 40.6 x 20.3 cm |
Step-up Height (footplate at lowest position) | 8 inches / 20 cm |
Standard Frame Colors | Gloss Metallic Silver Black Pearl |
Equipment Dimensions and Weight
Length | 80 inches / 203 cm |
Width | 30 inches / 76 cm |
Equipment Weight | 340 lbs / 154 kg |
Height | 72 inches / 183 cm |
Shipping Dimensions and Weight
Length | 85 inches / 216 cm |
Width | 30.75 inches / 78 cm |
Height | 28.125 inches / 71.4 cm |
Shipping Weight | 396 lbs / 180 kg |
Power Requirements
Equipment | Powered |
International 240 VAC | Applicable country-specific power cord |
U.S. & Canada 240 VAC | 220V-240V/15A circuit with 5-15R NEMA receptacle |
U.S. & Canada 120 VAC | 120V/15A circuit with 5-15R NEMA receptacle |
Cord Length | 12 feet / 3.7 meters |
Regulatory
cTUVus | Yes |
IEC CB | Yes |
FCC | Yes |
ETL | Yes |
CE | Yes |
EN957 | Yes |
ASTM | Yes |
Residential Warranty
Series/Line | Experience™ Series 600/700/800 Line |
Frame | Lifetime |
Drive Motor, Running Deck, & Belt | 10 years |
Console | 3 years |
Labor | 1 year |
High Wear Items, i.e. headphone jack, USB connectors | 90 days |
