Description
Overview

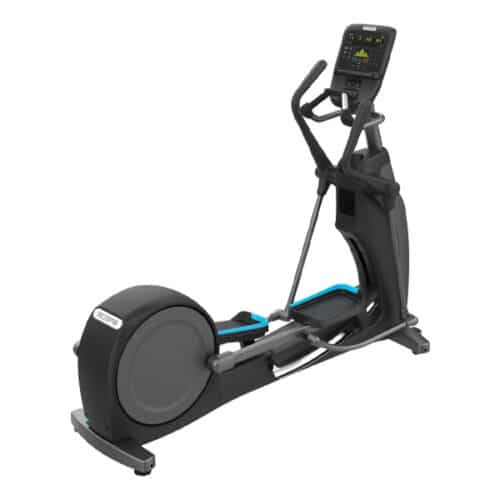

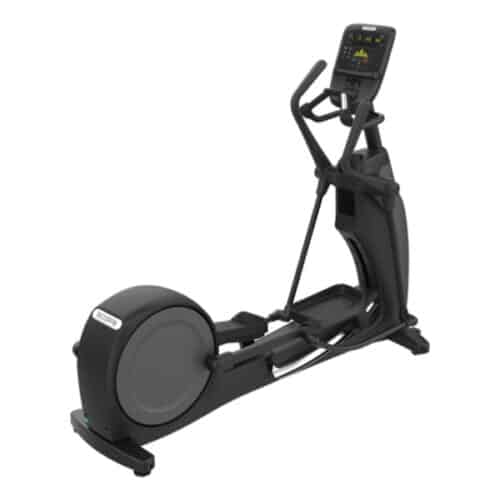

The Precor EFX® 835 with Converging CrossRamp® combines reliability with a natural converging stride path to give you the perfect elliptical for your facility. Carrying on in the tradition of Precor reliability and service, the EFX is easy to clean and maintain with a covered ramp and rear drive housing, and Active Status Light™ – all to improve your ownership experience. For exercisers, the EFX 835 combines the benefits of our patented CrossRamp® technology and moving handlebars for a total-body workout. The adjustable CrossRamp® technology offers ramp inclines from 10 to 35 degrees to target different muscle groups for more workout variety. And, our unique converging stride path allows the exerciser’s footpath to converge naturally – just like walking or running. The 830 Line console features easy-to-use motion controls and an LED-based display that focuses on the essential fitness stats that keep users informed and engaged.
|
Converging CrossRamp® Technology
Our patented elliptical path follows a natural running stride with a movement that allows the user’s feet to converge toward the midline of their body. Users can isolate or crosstrain specific lower body muscle groups simply by adjusting the angle of the ramp, making it easy to target different muscle groups, encourage training variance and propel results.
|
Moving Handlebars
With moving handlebars users can push and pull with their upper body to achieve a complete workout.
|
830 Line Console
Created to complement the entire Experience Series™ product line, the 830 Line console features easy-to-use motion controls and an LED-based display that focuses on the essential fitness stats that keep users informed and engaged. Add an optional Entertainment Cap to provide access to a selection of audio channels, including those from wall or ceiling-mounted displays, or a Personal Viewing System (PVS) to give exercisers a more personal entertainment experience, with total choice and control.
|
Equipment Features
| Covers | Long lasting appearance with covered ramp, enclosed rear covers, and covered frame and pivot joints.Covered ramp to prevent dirt and debris build-up. Easy to clean without removing the ramp cover or pedals.
Rear access cover can be removed and replaced in less than 2 minutes by removing only two screws. Convenient access to check and adjust drive belt tension. Front covers can be removed in less than 2 minutes, providing quick access to lift assembly. |
| Accessory Holder(s) | Thoughtful, secure storage with a logical, clean place for your water bottle, cell phone, and other accessories. |
| Transport Wheels | Wide transport wheels in the front of the EFX® allow the unit to be moved when cleaning the floor. |
| Biomechanics | Biomechanics validated by a Washington state university for users of all ages, fitness levels and sizes, from the 5% size female to the 95% size male user. |
| Bearings | Dual, in-line polyurethane wheels with over-sized axles and premium sealed bearings provide a perfectly balanced load, gliding on stamped, stainless steel tracks for an incredibly smooth feel. |
| Ramp | Converging Adjustable CrossRamp® |
| Foot Pedals | Oversized, polypropylene foot pedals fit your largest user and are easy to clean. |
| Ramp Angle | 10-35° |
| Upper Handlebars | Moving Handlebars |
| CrossRamp® Technology | Provides 20 different settings (10-35 degree ramp incline) for users to target different muscle groups. Ideal for all age and fitness levels. |
| CrossRamp® Technology | Automatic |
Resistance System
| Resistance System | Durable, proven 3-phase hybrid generator / eddy current system with new, faster controller provides 20 levels to tailor workouts with consistent, smooth resistance. The 20 resistance levels range from 18 watts (level 1 at 40 SPM) to 720 watts (level 20 at 200 SPM). |
| Resistance Levels | 1 – 20 |
| Minimum Watts | 18 watts |
| Maximum Watts | 720 watts |
Console Features
| Console Type | Large LED Display |
| Tactile Dome Keys | Yes |
| QuickStart™ | Yes |
| Motion Controls | Yes |
| Numeric Keypad | Yes |
| Muscle Monitor | Shows muscle recruitment related to change in CrossRamp |
| Units Selection | Metric and U.S. Standard |
| Preset Programs | Manual Interval Interval Total Body Interval Variety Cross Country 1 Gluteal 2 Gluteal Custom Performance Hill Climb Fitness Test 1 Cross Training 2 Cross Training 3 Cross Training Navy Fitness Test Heart Rate Basic HRC Weight Loss |
| Console Language(s) | Dutch, English, French, German, Italian, Russian, Spanish |
| Maximum Pause Time (Pause) | 30 seconds |
| Electronic Readouts | Resistance Level Incline Level Distance Strides / min Total Strides Calories Heart Rate Time Remaining Time Elapsed Time in Zone Segment Time Remaining Average Speed Calories / min Calories / hour Watts METS Target HR Average HR % Complete Workout Profile Workout summary |
| Maximum Workout Time | unlimited |
Heart Rate Monitoring
| Touch | Handheld heart rate sensors located on fixed handlebars for increased accuracy and ease of use by exercisers of all sizes. |
|
Telemetry |
Yes. Equipped for heart rate telemetry reading using a chest strap. |
| SmartRate® | No |
Integrated Entertainment Options
| Reading Rack | Integrated |
| Personal Viewing Screen (PVS) (Specification) | 15in. Screen (Optional) |
| Entertainment Cap / Wireless Receiver | Optional |
Network Capabilities
| CSAFE Ready | Yes |
| FitLinxx Compatible | Yes |
| Diagnostics | Ability to set club parameters, e.g. to limit exercise time and pause time. |
Equipment Specifications
| Maximum User Weight (lbs / kg) | 350 lbs / 159 kg |
| Step-up Height (footplate at lowest position) | 8 inches / 20 cm |
| Foot Pedal Dimensions (inches / cm) | 16 X 8 inches / 40.6 X 20.3 cm |
| Minimum Space Between Foot Pedals (inches / cm) | 1.5 inches / 3.8 cm |
| Stride Length at Minimum Incline (inches / cm) | 21 inches / 54 cm |
| Stride Length at Maximum Incline (inches / cm) | 25 inches / 63 cm |
Equipment Dimensions and Weight
| Length | 80 inches / 203 cm |
| Width | 30 inches / 76 cm |
| Height | 67 inches / 170 cm |
| Height with PVS | 82 inches / 208 cm |
| Machine Weight (base equipment) | 340 lbs / 154 kg |
Shipping Dimensions and Weight
| Length | 85 inches / 216 cm |
| Width | 30.75 inches / 78 cm |
| Height | 28.125 inches / 71.4 cm |
| Shipping Weight | 396 lbs / 180 kg |
Power Requirements
| Equipment | Self-Powered |
| Personal Viewing Screen (PVS) | Powered |
| Optional Power Supply | Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends. |
| U.S. & Canada 120 VAC | 120V/15A circuit with 5-15R NEMA receptacle |
| U.S. & Canada 240 VAC | N/A |
| International 240 VAC | Applicable country-specific power cord |
Regulatory
| FCC | FCC |
| ETL | ETL |
| CE | CE |
| EN957 / ASTM | EN957 / ASTM |
Residential Warranty
| Series/Line | Experience™ Series 600/700/800 Line |
| Frame | Lifetime |
| Drive Motor, Running Deck, & Belt | 10 years |
| Console | 3 years |
| Labor | 1 year |
| High Wear Items, i.e. headphone jack, USB connectors | 90 days |
