Overview

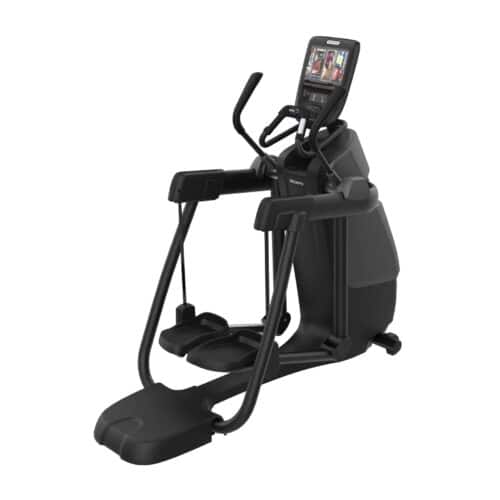

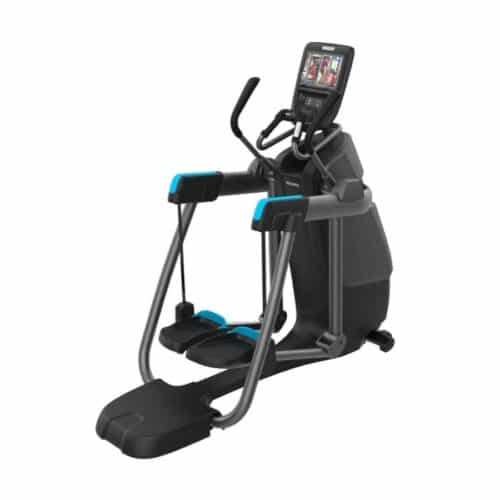

The award-winning and innovative design of the open stride Adaptive Motion Trainer® (AMT®) 865 at Portland Fitness, complete with the 860 Line console, intuitively responds to users’ natural motion, allowing users to completely change the flow of movements for a comprehensive cardio workout – all without so much as the push of a button.
CONSOLE
The 860 Line console provides a personalized viewing experience, remarkable TV clarity, and internet options that exercisers crave, all in a 10″ screen. With the ability to “favorite” selections for the future, exercisers on our advanced open stride adaptive motion trainers at Portland Fitness can customize their workout experience based on what is important to them.
Equipment Features
| Adaptive Stride Length | Naturally adapt stride length without the need to control settings. From zero to 36 inches (0 to 91 cm), to match the desired workout for each unique user. |
| Open Stride™ | Open Stride™ is a unique feature that allows exercisers to adapt their stride height from 6.8 to 10 inches (17 to 25 cm) and stride length from zero to 36 inches (0 to 91 cm). |
| Dual Action | Dual action provides both upper and lower body workout. Arms are engaged with pushing and pulling motion to provide the ultimate in total body engagement. |
| Stride Dial™ | By selecting Stride Dial™ from the Workout Progress Panel, users see stride length changes in real-time to determine the muscle groups being worked. By touching the Views button, users can add the Stride Dial™ to the Icon bar at the bottom of the touch screen. |
| Biomechanics | Biomechanics validated by Western Washington University Biomechanics Lab for users of all fitness levels and sizes, from the 5% size female to the 95% size male user. Excellent stability and freedom of movement. |
| Foot Pedals | Foot pedals with toe caps enable user to optimize muscle involvement. Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame. |
| Step-on Platform | Step on platform in the rear is polypropylene for durability. Platform enables the user to step onto the foot pedals while identifying how far the foot pedals may extend from the back of the machine. |
| Bearings and Pivot Points | The smooth feel on our open string adaptive motion trainers at Portland Fitness is optimized by using large bearings and oversized pivot shafts. |
| Water Bottle and Accessories Holder | Accessories holders for water bottle, reading communication devices and portable music player. |
| Covers | Side panels are easy to remove for servicing. |
| Transport Wheels | Integrated |
| Cable Management | Optional |
Resistance System
| Resistance System | Twenty resistance levels ranging from 20 watts (level 1 at 60 SPM, zero stride length) to 375 watts (level 20 at 120 SPM, max stride length). |
| Resistance Levels | 1 – 20 |
| Minimum Watts | 20 watts |
| Maximum Watts | 375 watts |
Console Features
| Console Type | 10.1 in / 25.7 cm LCD Capacitive Touch Screen |
| Tap Control | No |
| Tactile Dome Keys | Yes |
| QuickStart™ | Yes |
| Motion Controls | Yes, in software |
| Numeric Keypad | Yes |
| Units Selection | Metric and U.S. Standard |
| Preset Programs | Lose Weight Fat Burner Aerobic Be Fit Manual 1-1 Interval 2-1 Interval 4-1 Interval Rolling Hills Mountain Peaks Hill Climb Push Performance 1-4 Interval 1-2 Interval 5 K |
| Console Language(s) | Chinese, Dutch, English, French, German, Italian, Japanese, Russian, Spanish (software updates occur frequently, check with your sales representative for the latest features available) |
| Maximum Pause Time (Pause) | 120 seconds |
| Electronic Readouts | Resistance Level Open Stride Level Total Distance, Distance Remaining Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts Time Elapsed, Time Remaining, Time in HR Zone, Segment Time Strides/Min, Average Strides/Min, Total Strides Heart Rate, Average Heart Rate, Max Heart Rate |
| Maximum Workout Time | 120 minutes |
Heart Rate Monitoring
| Touch | Handheld heart rate sensors located on fixed handlebars for increased accuracy and ease of use by exercisers of all sizes. |
|
Telemetry |
Yes. Equipped for heart rate telemetry reading using a chest strap. |
| SmartRate® | No |
Integrated Entertainment Options
| Reading Rack | Optional |
| Personal Viewing Screen (PVS) (Specification) | 15in / 38.1 cm LCD Capacitive Touch Screen Supports NSTB, PAL, PAL BG Standards, Closed Caption |
| iPod / iPhone Compatible | Integrated |
Network Capabilities
| CSAFE Ready | Yes |
| FitLinxx Compatible | Yes |
| Diagnostics | Ability to set club parameters, e.g. to limit exercise time and pause time. |
Equipment Specifications
| Maximum User Weight (lbs / kg) | 350 lbs / 159 kg |
| Step-up Height (footplate at lowest position) | 6.5 inches / 16.5 cm |
| Foot Pedal Dimensions (inches / cm) | 8 W x 14 L inches / 20 W x 36 L cm |
| Minimum Space Between Foot Pedals (inches / cm) | 4 inches / 10 cm |
Equipment Dimensions and Weight
| Length | 80 inches / 203 cm |
| Width | 35 inches / 89 cm |
| Height | 73 inches / 186 cm |
| Equipment Weight | 422 lbs / 191 kg |
| Machine Weight (base equipment) | 422 lbs / 191 kg |
Shipping Dimensions and Weight
| Length | 70 inches / 178 cm |
| Width | 32 inches / 81 cm |
| Height | 67 inches / 170 cm |
| Shipping Weight | 495 lbs / 225 kg |
Power Requirements
| Equipment | Powered |
| Personal Viewing Screen (PVS) | Powered |
| U.S. & Canada 120 VAC | 120V/15A circuit with 5-15R NEMA receptacle |
| U.S. & Canada 240 VAC | N/A |
| International 240 VAC | Applicable country-specific power cord |
Regulatory
| FCC | FCC |
| ETL | ETL |
| CE | CE |
| EN957 / ASTM | EN957 / ASTM |
Residential Warranty
| Series/Line | Experience™ Series 600/700/800 Line |
| Frame | Lifetime |
| Drive Motor, Running Deck, & Belt | 10 years |
| Console | 3 years |
| Labor | 1 year |
| High Wear Items, i.e. headphone jack, USB connectors | 90 days |
